Introduction
This purifier adopts the OW process for oxygen purification. The feed oxygen enters the purifier, where impurities such as H₂, CO, CH₄, and NMHC in the oxygen are converted into H₂O and CO₂ by utilizing the characteristics of a high-temperature noble metal catalyst. These are then removed by a W (ambient-temperature adsorption reactor), which eliminates impurities such as H₂O and CO₂ from the feed gas. Once the bed reaches adsorption saturation, it undergoes heating for regeneration. The ambient-temperature adsorption reactors are designed with one in operation and one on standby, enabling continuous operation.

OW Process
Process Flow
Catalyst removes H₂、CO、THC
Adsorbent removes CO₂、H₂O
After the adsorption reactor reaches saturation, it is regenerated by oxygen purging with heating. Dual vessels switch over to ensure continuous gas supply.

Application Areas
Semiconductor, LED, Laser, and Solar PV Industries
Optical Fiber Industry
Integrated Circuit Manufacturing Industry
High-Purity Gas Analysis

Product Features
1.Ultra-High Purification Accuracy
★ Proprietary catalyst technology with synergistic chemical adsorption, achieving impurity removal to depths of ≤1 ppb.
2.Long-Life Design
★ It utilizes internationally renowned brand components; full-automatic orbital welding by Swagelok, integrated with advanced explosion-proof strategies to ensure safe and stable system operation.
★ Catalyst service life: ≥ 3 years | Unit operational lifespan: ≥ 15 years
3.Strong Anti-Fluctuation Performance
★ Designed with 120% redundancy per protocol, ensuring stable gaseous index output under fluctuating working conditions.
4.High Accident Resilience
The purification unit features power-off protection functionality.
5.Smart IoT Operation & Maintenance
★ Fully automated operation with remote monitoring
★ Fault early warning and interlocking + operational data traceability system

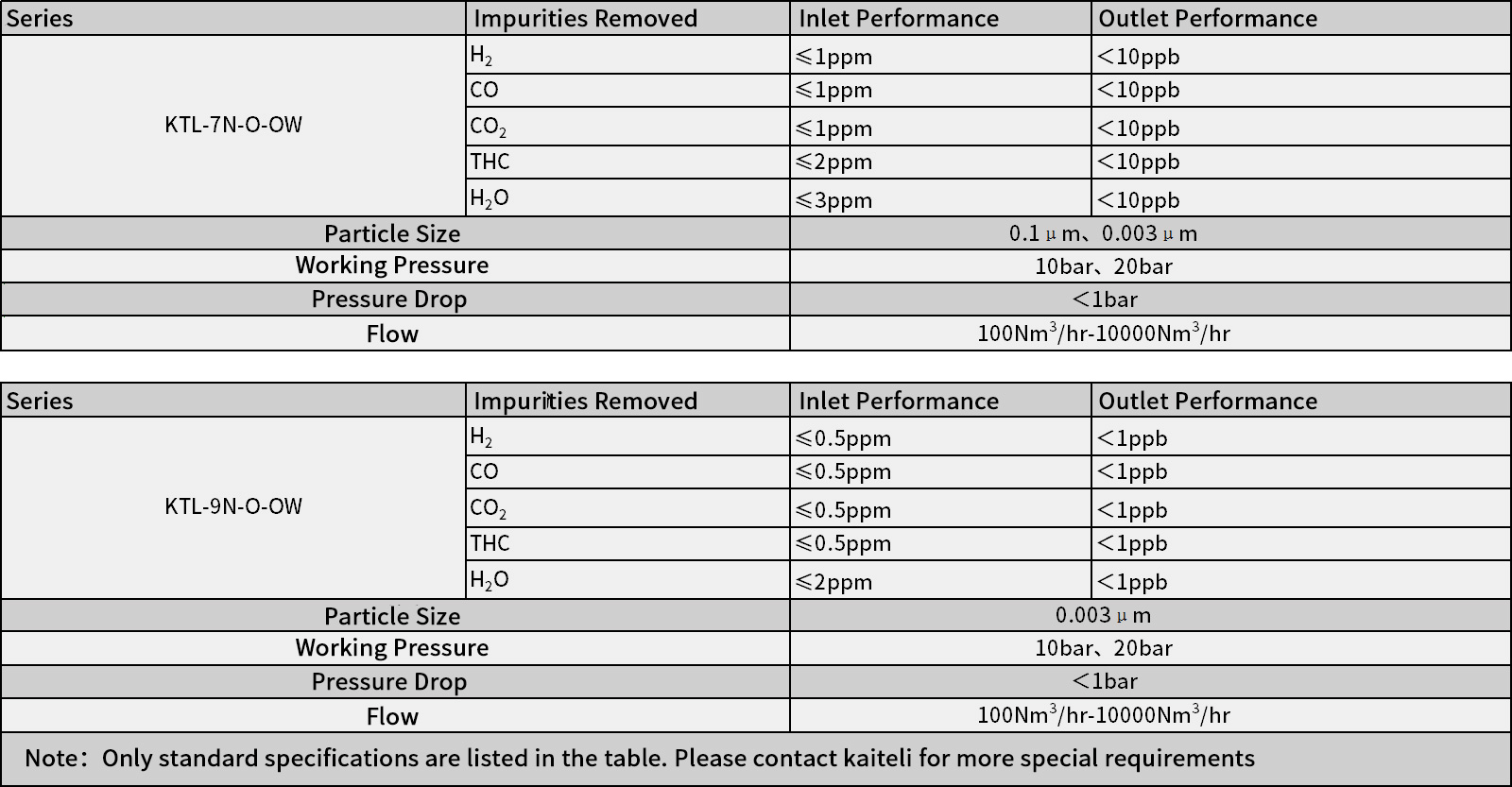

Technical Parameters
