Introduction
This purifier employs the OW process for nitrogen purification. The feed nitrogen enters the purifier and first undergoes the O (Catalytic Oxidation) process. Utilizing the properties of a high-temperature noble metal catalyst, this process converts impurities such as H
2, CO, and CH4 in the nitrogen into H
2O and CO
2. Subsequently, the gas passes through the W (Ambient Temperature Adsorption Reactor), which effectively removes impurities like O
2, H
2O, and CO
2. Once the bed reaches adsorption saturation, it is regenerated by introducing hydrogen. The ambient temperature adsorption reactors are designed in a one-operating, one-standby configuration, enabling continuous operation.
OW process
Process Flowa
Catalyst removes O
2、H
2、CO、THC；
Adsorbent removes O
2、CO
2、H
2O
The adsorption reactor is regenerated with hydrogen upon saturation via heating. Dual towers switch over to ensure a continuous gas supply.
Application Areas
Semiconductor, LED, Laser, and Solar PV Industries
Optical Fiber Industry
Integrated Circuit Manufacturing Industry
High-Purity Gas Analysis
Product Features
1.Ultra-High Purification Accuracy
★ Proprietary catalyst technology with synergistic chemical adsorption, achieving impurity removal to depths of ≤1 ppb.
2.High-Stability Design
★ It utilizes internationally renowned brand components; full-automatic orbital welding by Swagelok, integrated with advanced explosion-proof strategies to ensure safe and stable system operation.
3.Strong Anti-Fluctuation Performance
★ Designed with 120% redundancy per protocol, ensuring stable gaseous index output under fluctuating working conditions.
4.High Accident Resilience
The purification unit features power-off protection functionality.
5.Smart IoT Operation & Maintenance
★ Fully automated operation with remote monitoring
★ Fault early warning and interlocking + operational data traceability system

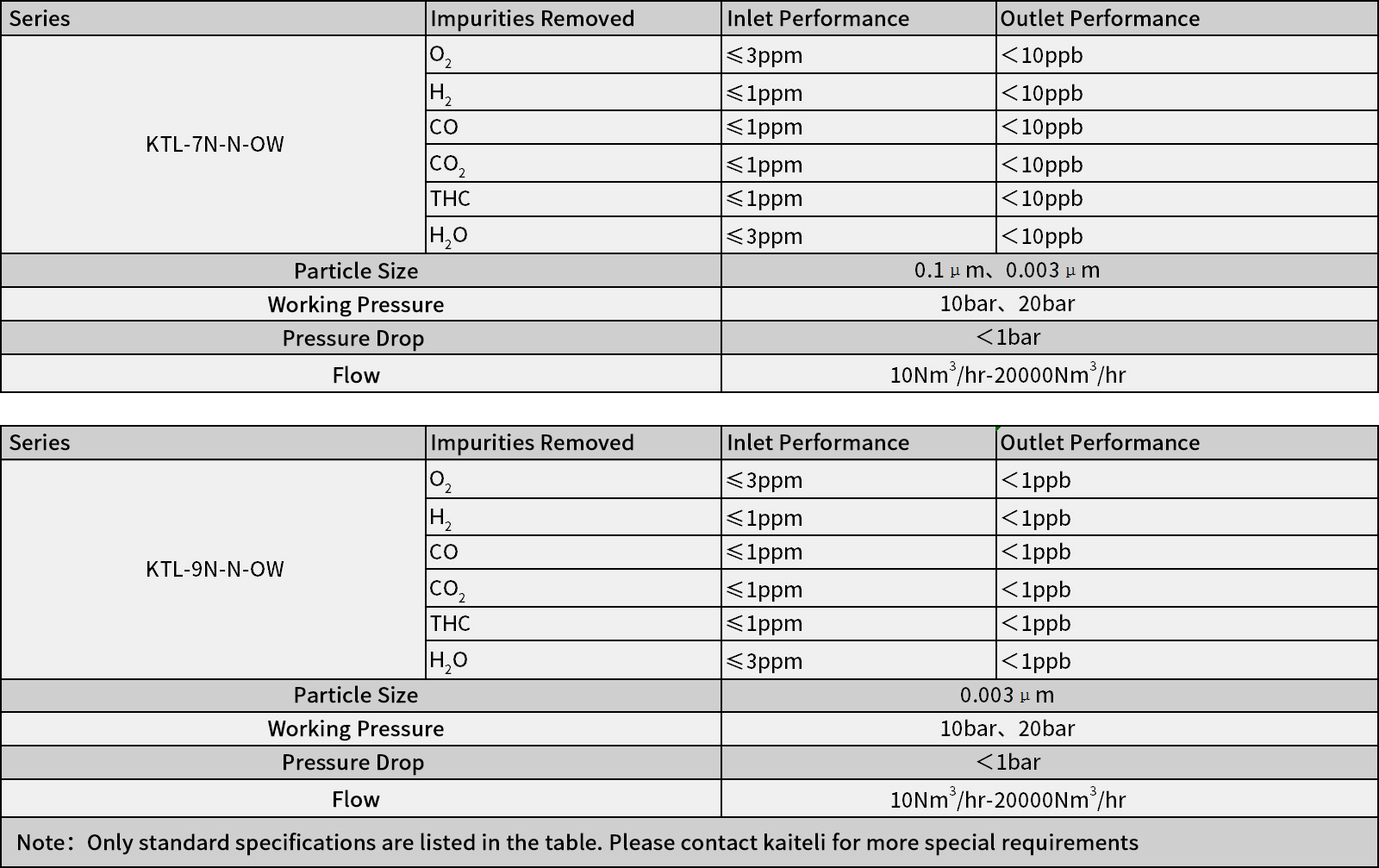

Technical Parameters
